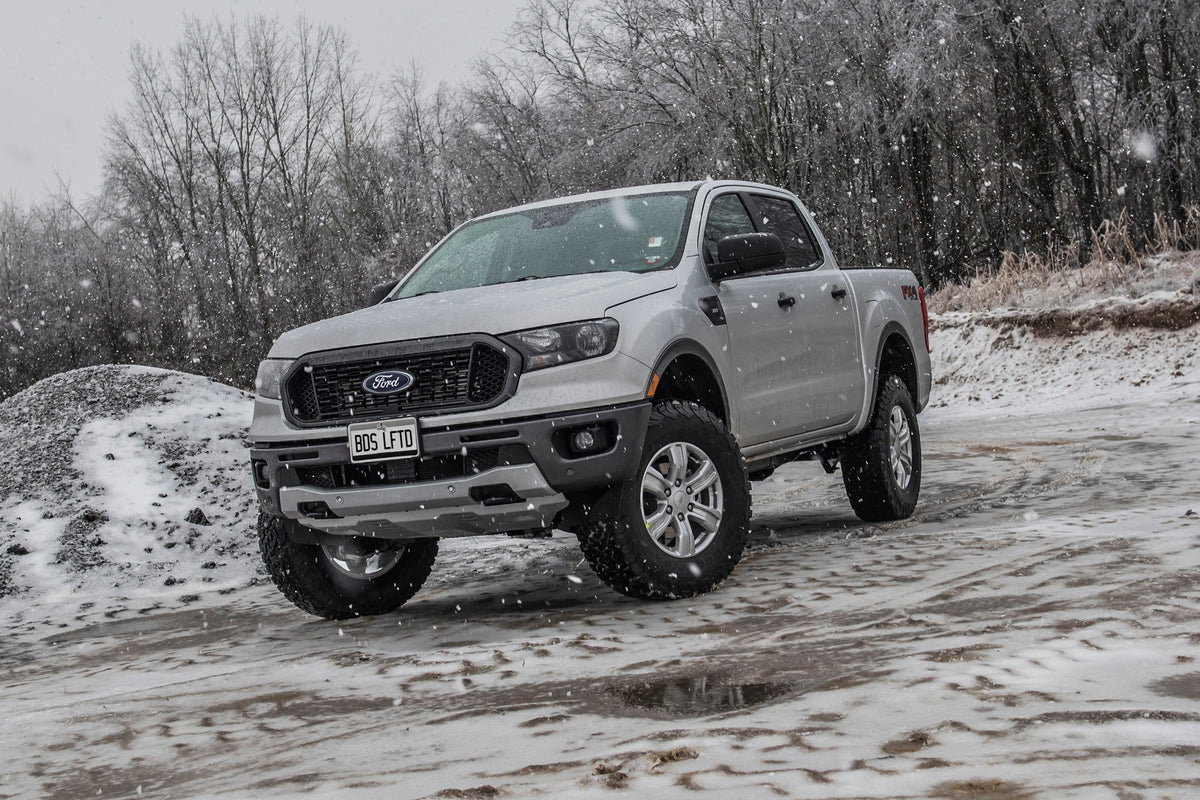

2 Inch Leveling Kit | Ford Ranger (19-23) 4WD

Level the front of your 2019-2023 Ford Ranger truck by installing this 2-inch leveling kit from BDS. Specially designed for the new Ranger, this 2 Inch leveling kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

The lift kit includes steel top mount strut spacers, pre-load spacer and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2 Inch leveling kit from BDS Suspension.

• Front Lift Method: Strut Spacer
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 285 / 65 Wheel Diameter: 18 x 9

Kit Components:

• Includes one BDS013203, 2019-2023 Ford Ranger 2 Inch Leveling Kit, UPC Code 658848613106
• Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952
