3 Inch Lift Kit | FOX 2.5 Performance Series HTO Coil-Over | Ford Bronco (21-25)

Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Series HTO 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

Up front the lift kit includes FOX 2.5 Performance Series HTO coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Series HTO coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3 inch of lift, 4-Door Badlands: net 3.5 inch of lift, and 4-Door Broncos with the base suspension: net 4 inch of lift.

FOX 2.5 Performance Series HTO Shocks:

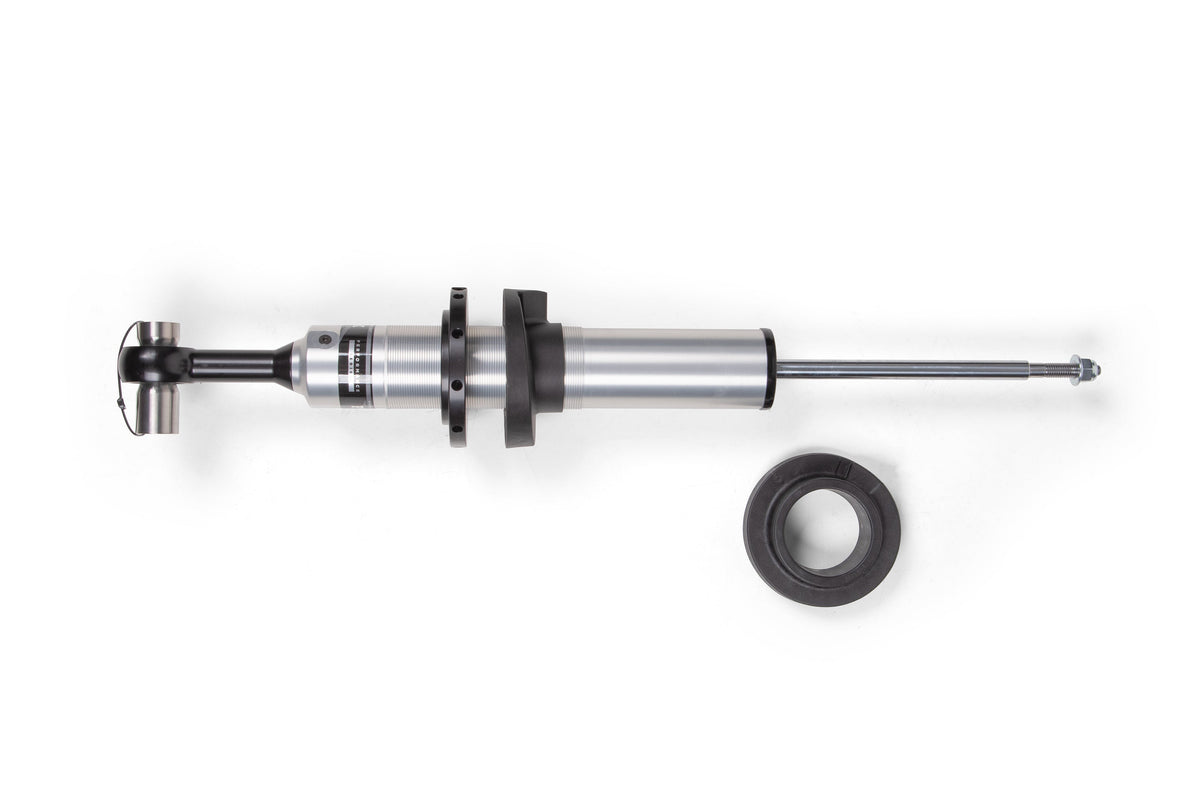

The FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion.

The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

:

HD Upper Control Arms (UCAs):

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed high-stength uniball or ball joint to correct the joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality uniball or greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Details:

• Finish: Powdercoat
• Color: Black
• Front Lift Height: 3.0 Inch
• Rear Lift Height: 2.0 Inch
• Lift Height: 3.0 Inch
• Material: Aluminum
• Engine Years: 2021-2025
• Shocks Included: Yes
• Series: Performance Series
• Shock Style: FOX 2.5 Performance Series HTO Shocks
