6 Inch Lift Kit | Toyota Tacoma (05-15) 4WD

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Minor welding required
2. Requires frame bracket modification
3. Strut compressor required for installation
4. Stock wheels cannot be reinstalled
5. System will work on 2WD PreRunner models
6. Can not use 17 inch wheels.
7. Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

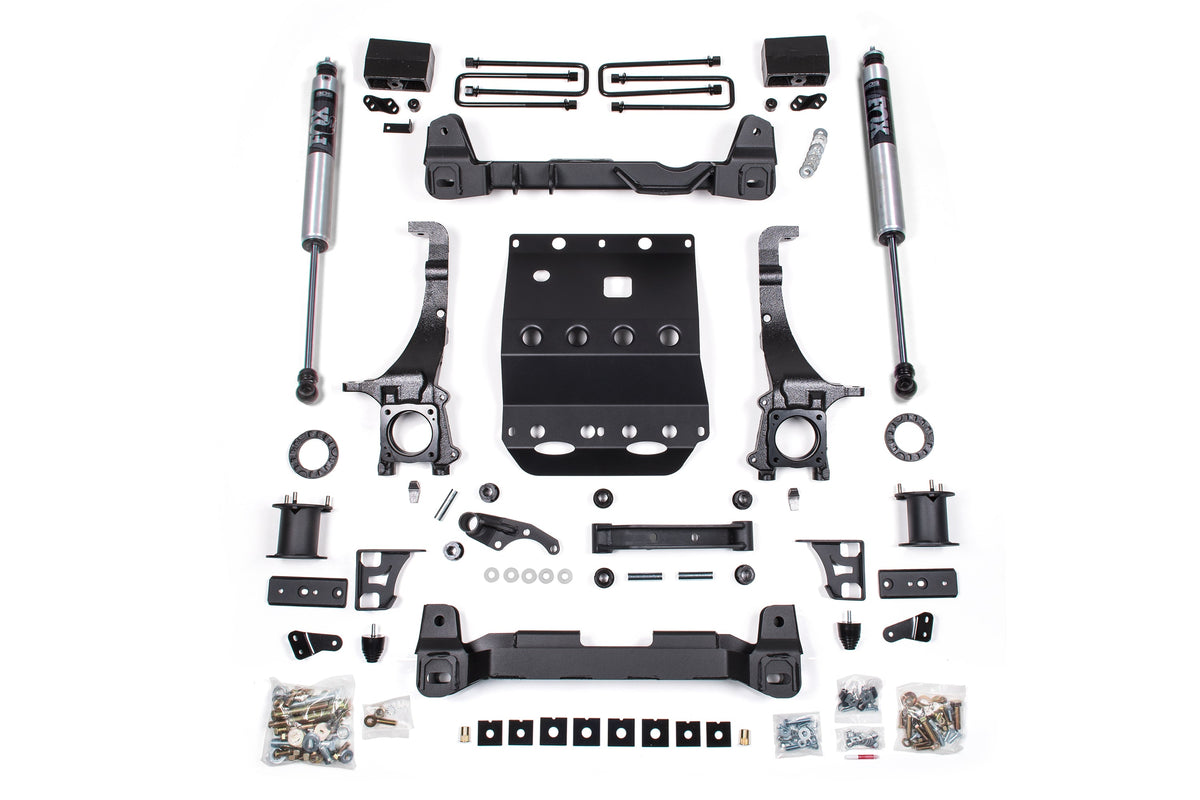

Kit Components:

• Includes one BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit, UPC Code 658848614479
• Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
• Includes one BDS028601, 05-15 Tacoma Front Box Kit 2 of 4, UPC Code 658848616206
• Includes one BDS028602, 05-15 Tacoma Front Box Kit 3 of 4, UPC Code 658848616213
• Includes one BDS028603, 2005-2023 Tacoma 6 inch Frt Box Kit 4 of 4, UPC Code 658848616220
• Includes two BDS85953, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1, UPC Code 711745610064
